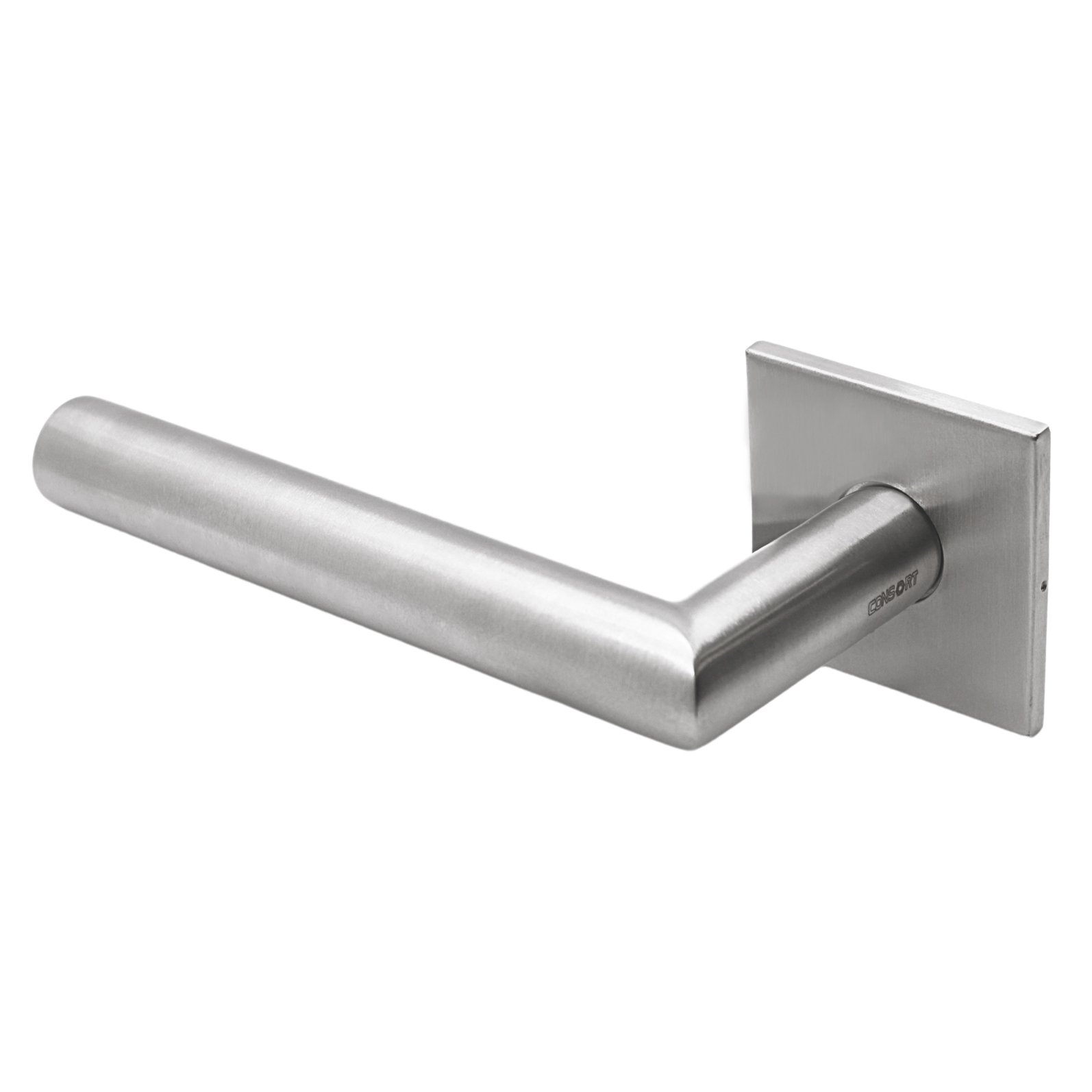

Mitred Hollow Lever Handle AHM-1401
Mitred Hollow Lever Handle on a Square Rose
- Sharp angled bends and rose cover, create and aesthetically pleasing design
- Suitable for timber or steel door applications

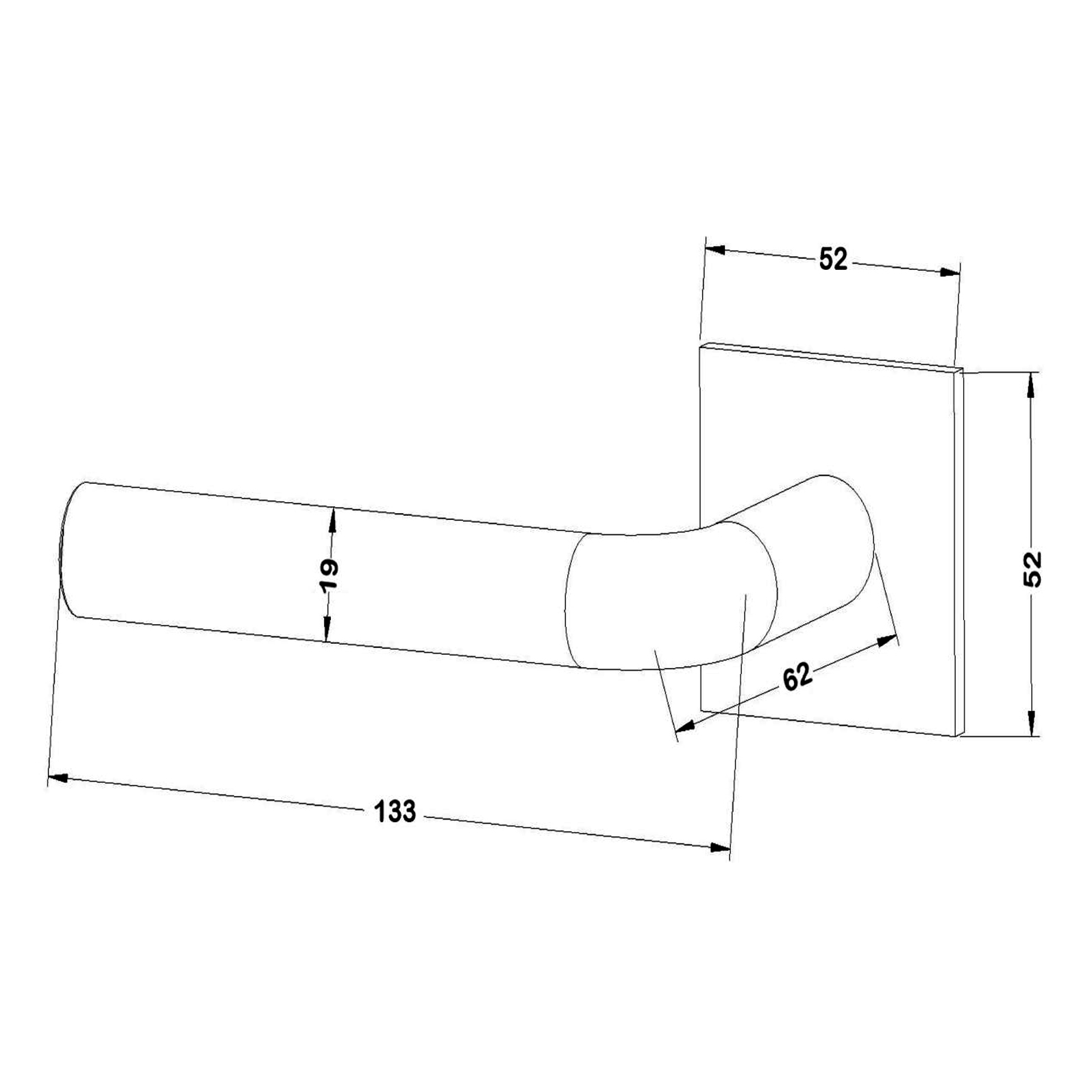

- Slimline low friction 52mm x 52mm x 4mm unsprung square rose
- Bolt-through fixings specifically measured for 44mm and 54mm doors to reduce install time.
- Lock tight used on both bolt through fixings and grub screw to ensure products stays firmly fixed once installed on the door
- Grade 316 Satin Stainless Steel
Mitred Hollow Lever Handle on a Square Rose
- Tested to BS EN 1906.4
- Classification Code 4.7.-B.1.4.0.U
- Suitable for use on doors up to FD120 timber and FD240 metal door and frame applications
- Fire door approved: Certifire Warrington Certificate of Approval No. CF5502
- Fire tested to BS EN 1634-1:2008
Compatible with the following ranges
- Education Range
- Healthcare Range
- Hotel & Hospitality Collection
- Social Housing Range
- Quick Service Door Range
- Mercantile Range (Commercial)
- PAS24 Secured By Design
- Artisan Panel Door Collection
- Airport Range
Finish options
- Stainless Steel Grade 316 - satin
Disclaimer: Ironmongery finishes can vary by brand, manufacturer and the base metal they are applied to. These colour samples are for guidance purposes only and may differ from the actual finish.
